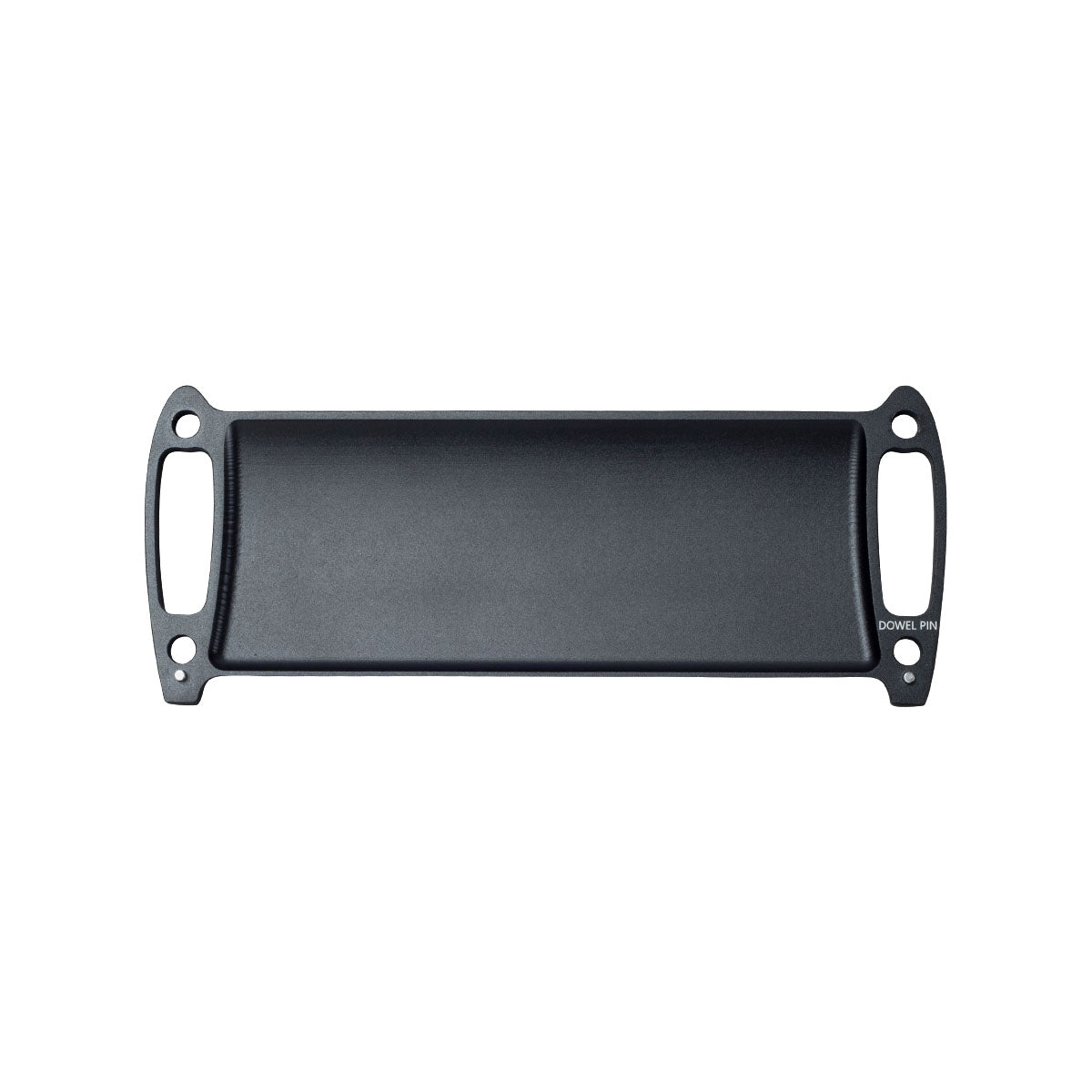

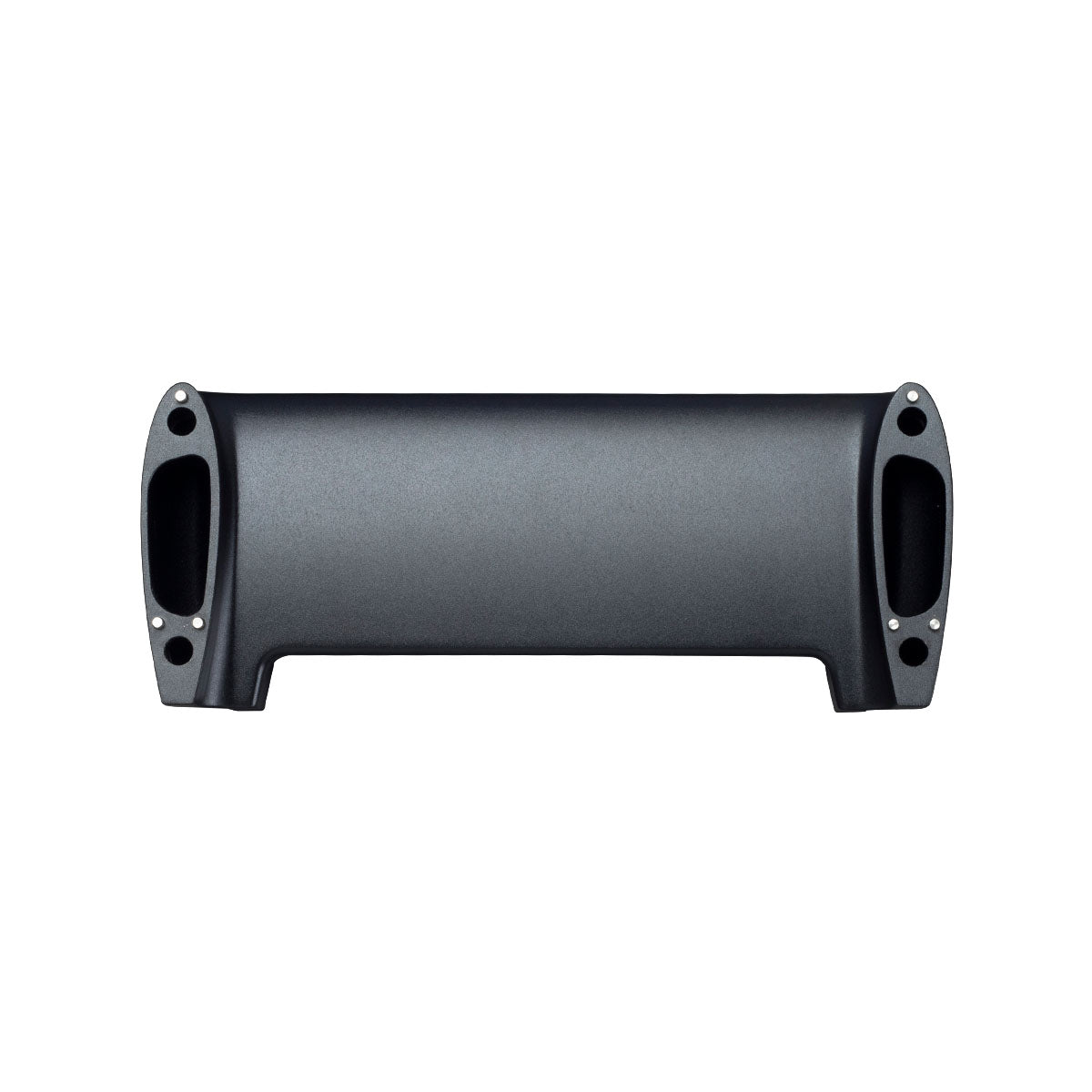

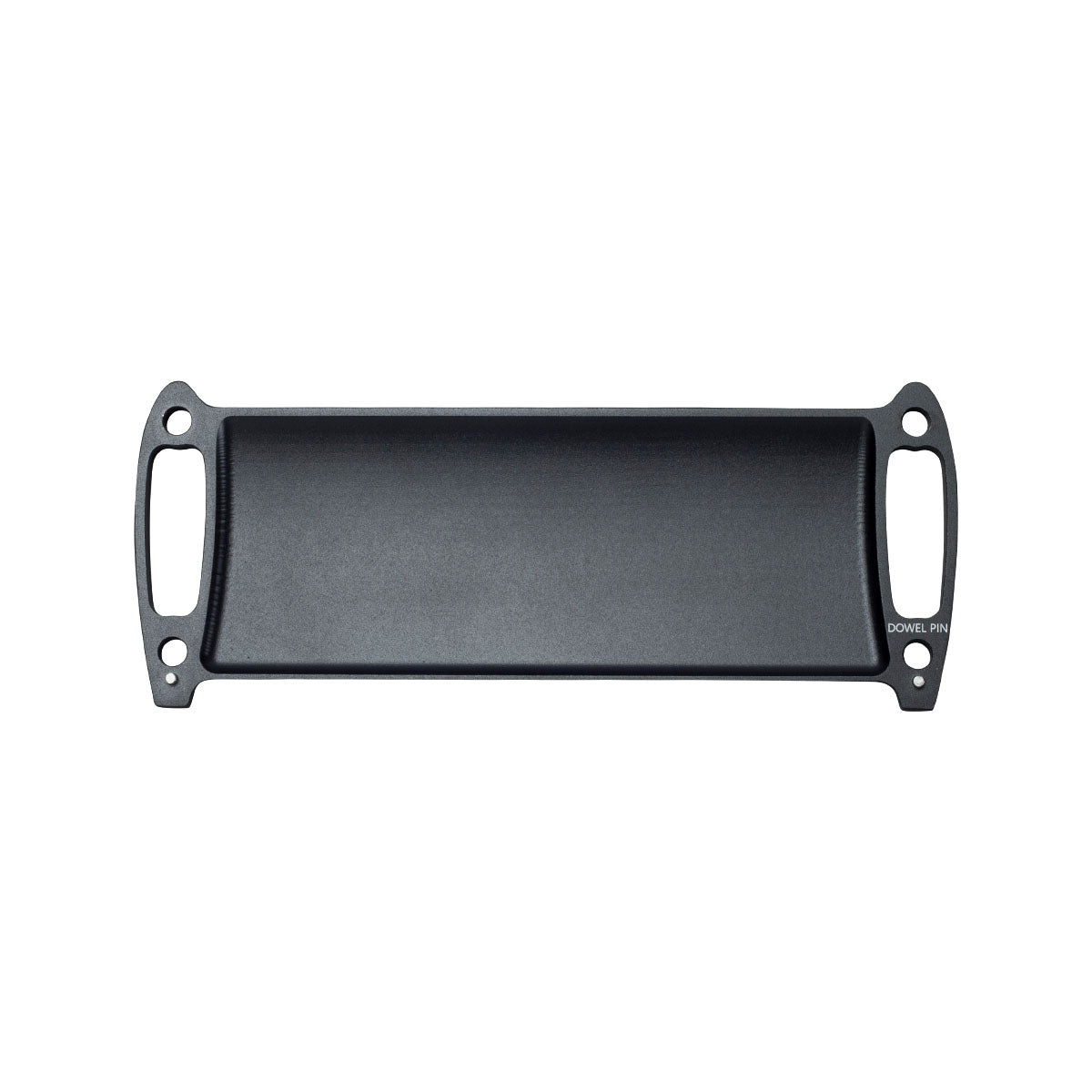

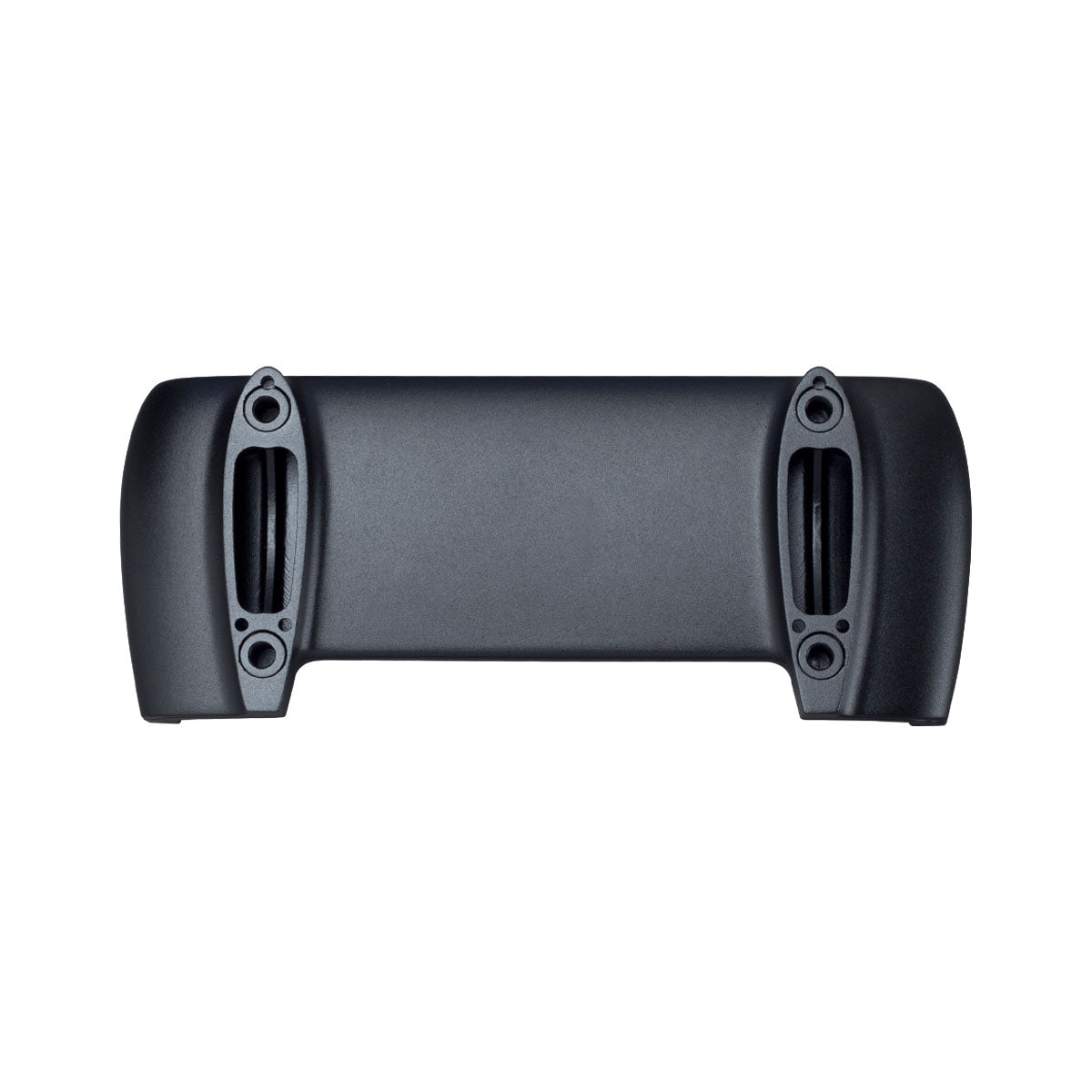

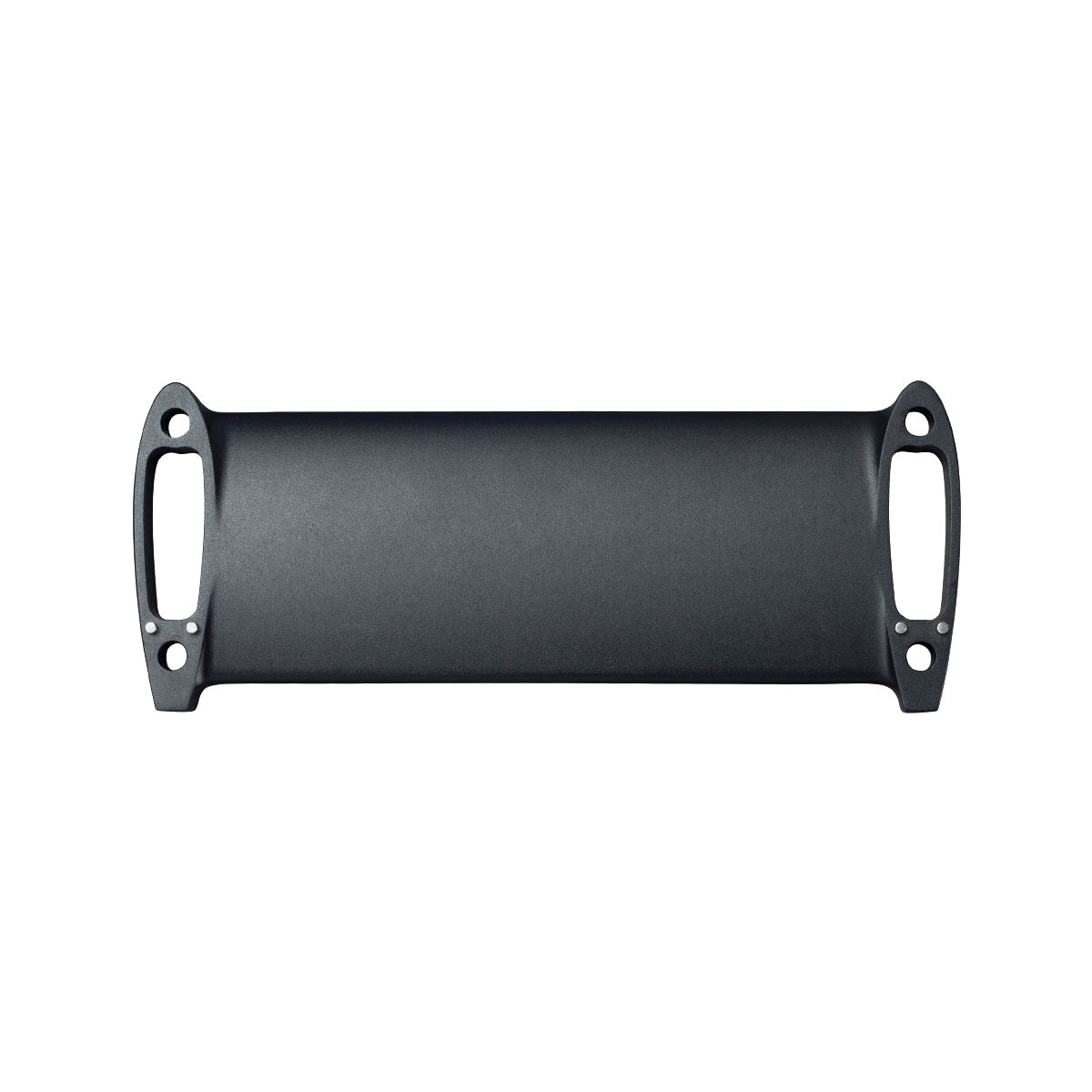

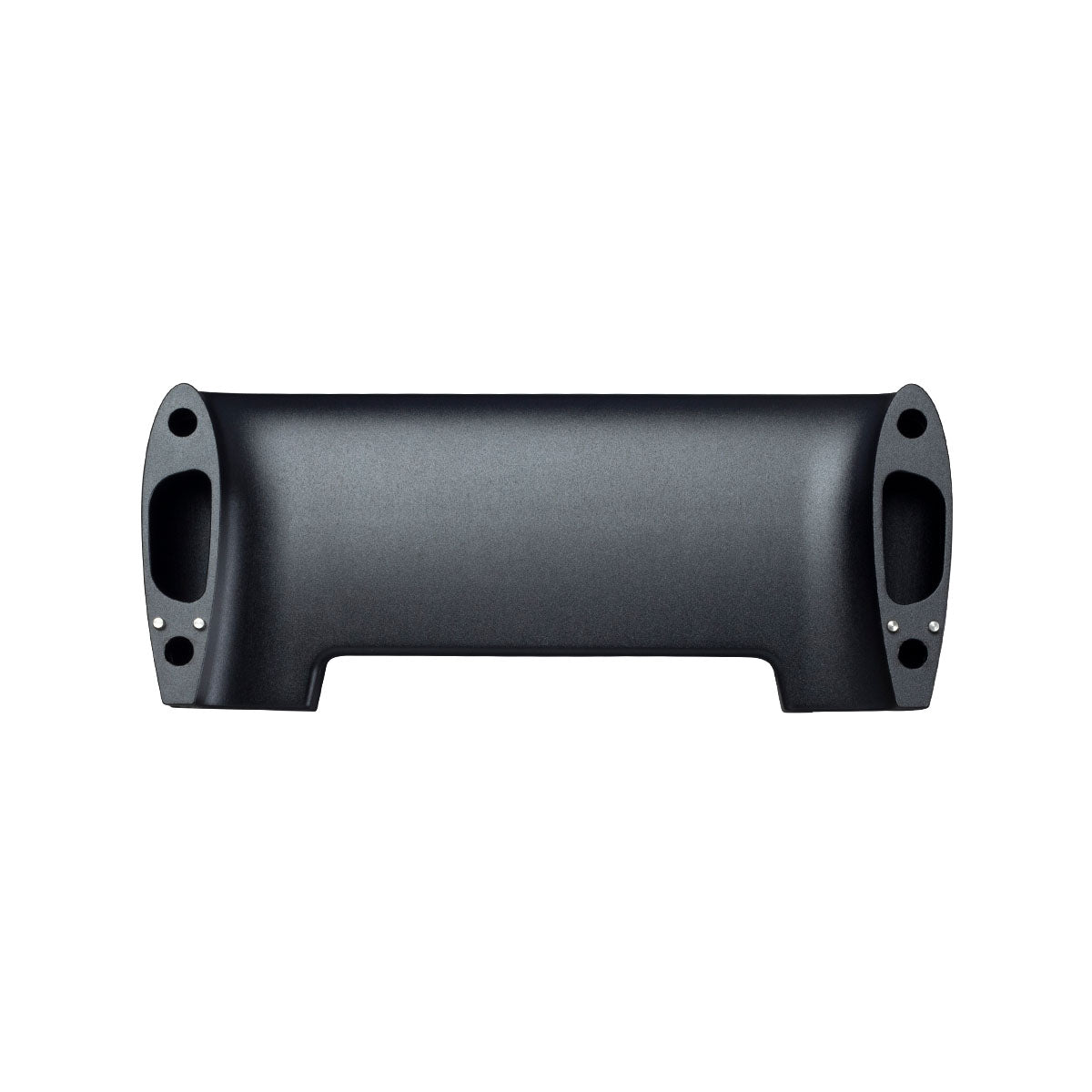

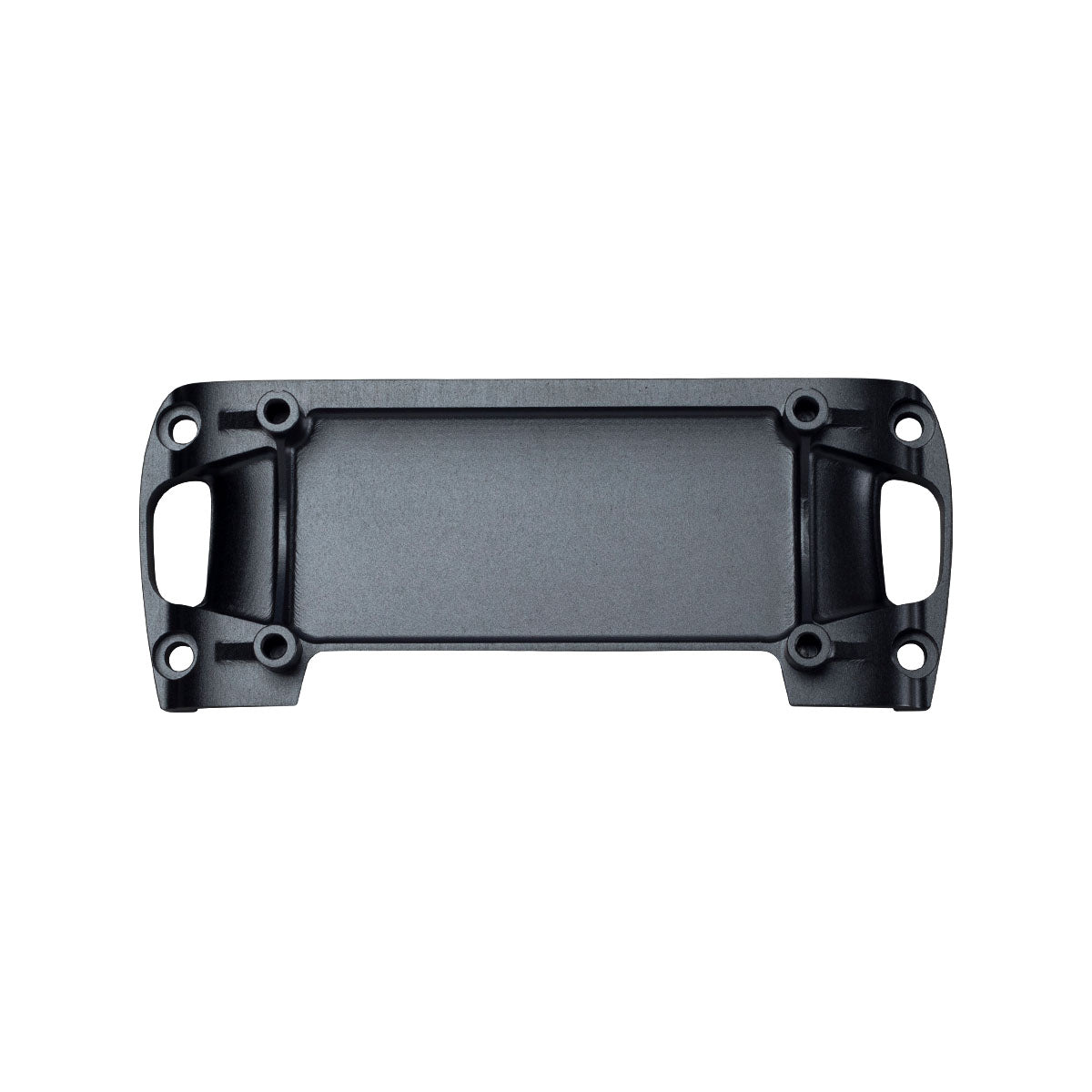

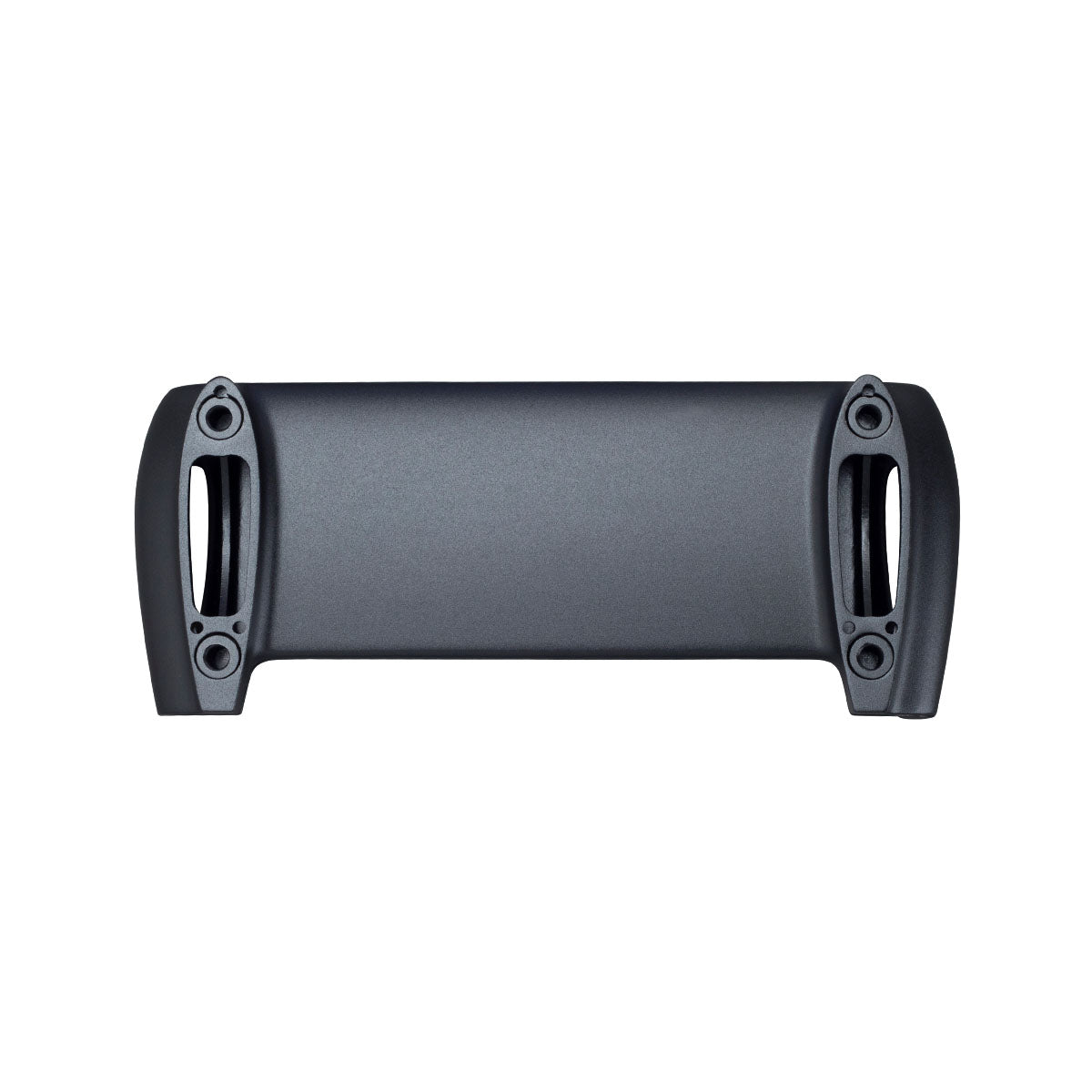

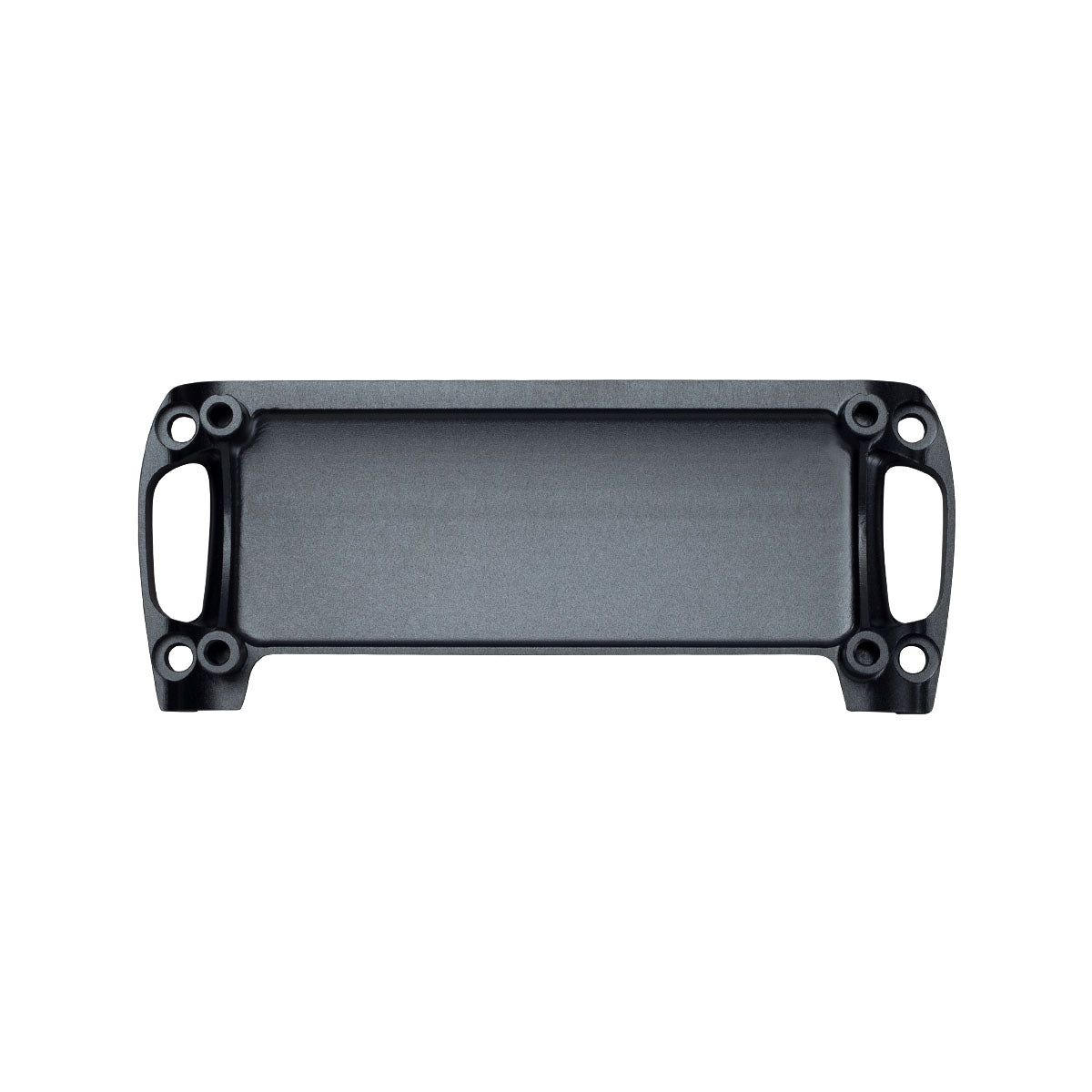

Dual Stack Bridge

- UD carbon with aluminium threaded inserts.

- Three extension lengths available: Small, Medium and Large.

- Telescopic design allowing for fine tuning of extension length, with 30 mm that can be trimmed from the extension.

- Two extension clamp lengths are included: Medium and Large.

- Large clamp offers an additional 30 mm of extension reach.

- 6061 T6 aluminium extension clamps, maximising strength in the most critical region of the extensions.

- AB03 angle adjustable Clamp Cradles, 6061 T6, maximising strength and reliability.

- Self-aligning with extension clamp for easy assembly, dowel pins for assisted alignment with lower spacer components.

- 15, 20 and 25 degree clamp cradles available plus angle adjustment wedges at 2.5 and 5 degrees cater for 15-30 degrees total range.

- PA11 MJF printed accessories, including grips, computer mounts and BTAs.

- Designed specifically for our AB03 extensions.

- Self-aligning with extension clamp for easy assembly, dowel pins for assisted alignment with lower spacer components.

- 6061T6 and 7075T6 aluminium as per component mechanical requirements, black anodised for a hard-wearing and robust finish.

- Three extension widths supported: 135 mm, 115 mm and 95 mm. See bike-specific Fit Kits for more information.

- Centre Stack and Dual Stack bikes supported. See bike-specific Fit Kits for more information.

- Dowel pins for assisted assembly.

- All bolts up to 50 mm are A2 stainless steel.

- All bolts 50 mm and above are G12.6 zinc-plated.
